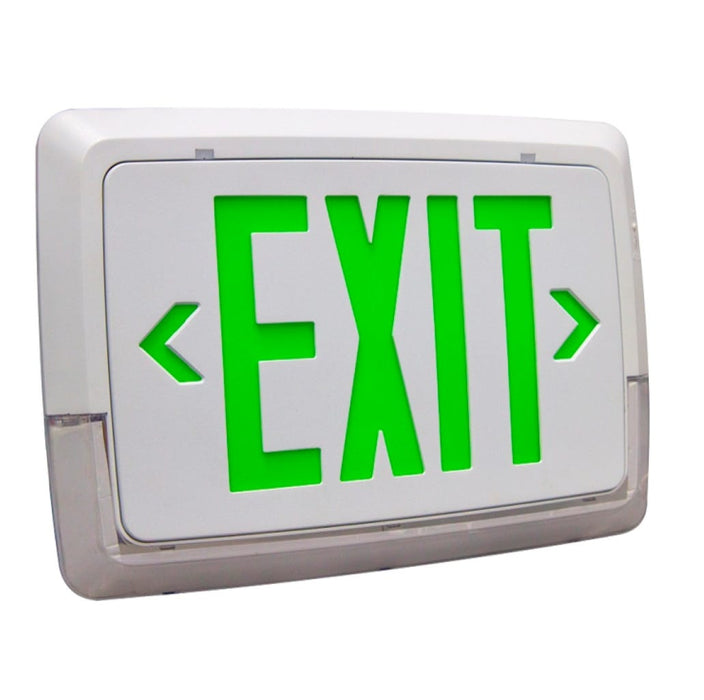

Halco - EMG-LPCU-G-WH - Low Profile Exit & Emergency Combo Single Face Green Legend White Housing
Low Profile Exit & Emergency Combo, Single Face, Green Legend, White Housing, Designed for Low Level Wall Mounting (2-6FT)
Halco's Emergence Low Profile Combination Exit Sign/EM Unit offers a thin code compliant solution for hallway, stairwell, and other Life Safety applications. Originally designed for low level applications, this product also works well in restricted spaces above a doorway. The translucent low glare acrylic lens exhibits a minimalist aesthetic, yet performs exceptionally well due to its chrome plated metalized reflector controlling (24) white LED maintenance free lamps. Halco's Low Profile Combo is available with a red or green stencil face and mounts easily to smooth surfaces with its built in key hole slots or to a standard junction box using the universal knock out pattern on the back plate. This All-in-One Exit Sign / Emergency light includes field-selectable chevron indicators as well as dual input voltage
Features
- Single face designed for low-level (2' to 6') wall mounting"‹
- Low profile (1in) 5VA flame-retardant thermoplastic housing
- Surface wall mount with universal J-box knockout and keyhole slots
- 90min maintenance free 3.6V NiCad battery"‹ backup, manual test button & charging indicator
- 3.1W (24 LEDs x 0.13W) low glare light strip"‹ 184Lumen
- Field-Selectable snap out chevrons, 6in illuminated legend
Product Details
| Product Code | EMG-LPCU-G-WH |
| Halco Product ID | 97141 |
| UPC | 807154971411 |
| Technology | LED |
| Applications | Life Safety for building exit paths needing EM light in Offices, Educational Buildings, Hallways and Retail Buildings |
| Wattage | 3.1W |
| Lumens | 184 |
| Voltage | 120-277VAC |
| Dimmable | No |
| Finish | White Thermoplastic with Green Legend |
| Location Rating | Damp or Dry |
| Warranty | 2 Year |
| DLC | No |
| Energy Star | No |
| UL Listed | Yes |
| ETL Listed | No |
| IP Rating | No |
| Title 24 | No |
| Dimensions L | 12.8 |
| Dimensions W | 9 |
| Dimensions H | 2 |
| Weight (lb) | 3.2 |
| Country of Origin | US |
