Halco - CBT-24-LS-CS-UNV - 2x4 Troffer Controls Ready Lumen & Color Select 0-10V Dim
LED 2x4 Center Basket Troffer Controls Ready 3.5mm Receptacle Lumen & Color Selectable (4000-5000Lum 30-35-40W 3500K-4000K-5000K) UNV 120-277V 0-10V Dimmable

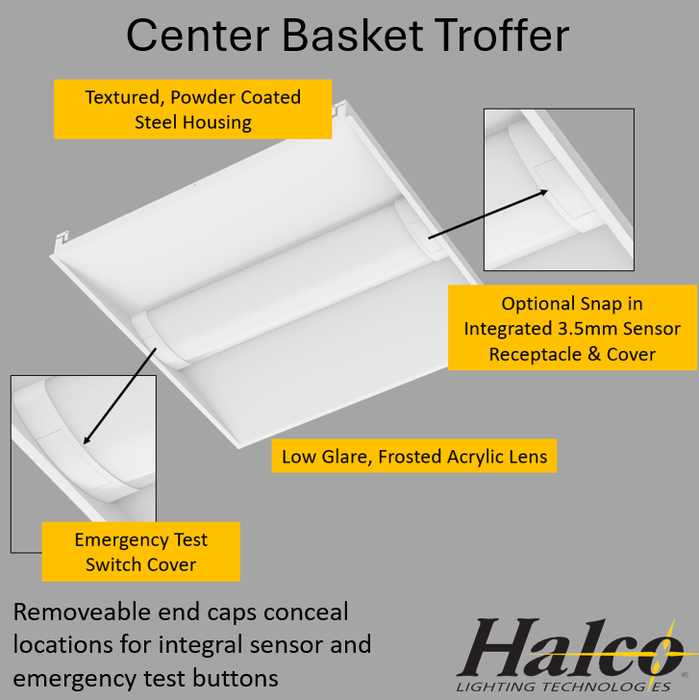

The Center Basket Troffer is a family of sleek, modern LED troffers and retrofit kits designed for new construction, remodel and retrofit recessed ceiling applications. The fully illuminated, frosted acrylic center basket design can fully illuminate the floor and walls of a room while still minimizing fixture glare. Removeable end caps conceal a 3.5mm receptacle for integrated sensor fixture control one end and an optional emergency battery pack test button on the other end. The retrofit kits can be used to easily and quickly convert most standard fluorescent parabolic, troffer and panel fixtures to a energy efficient, controls ready luminaire. Enlist the Center Basket Troffer family for your next lighting project.
Features
- Powdercoated steel fixture body
- Frosted acrylic center basket design illuminates walls and floors & minimizes glare

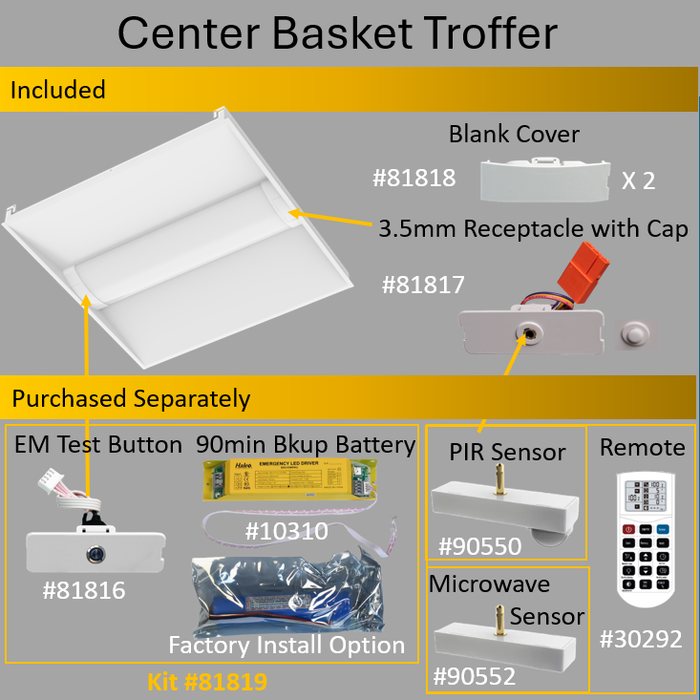

- 3.5mm receptacle for integrated fixture sensors (in bag attached to fixture)
- Pre-wired for optional battery backup & test button sold separately
Product Details
| Product Code | CBT-24-LS-CS-UNV |
| Halco Product ID | 81800 |
| UPC | 807154818006 |
| Category | Troffers |
| Technology | LED |
| Applications | Commercial, Education, Healthcare , Hospitality, Retail Office, Lobby, Hallway, Conference Room, Classroom |

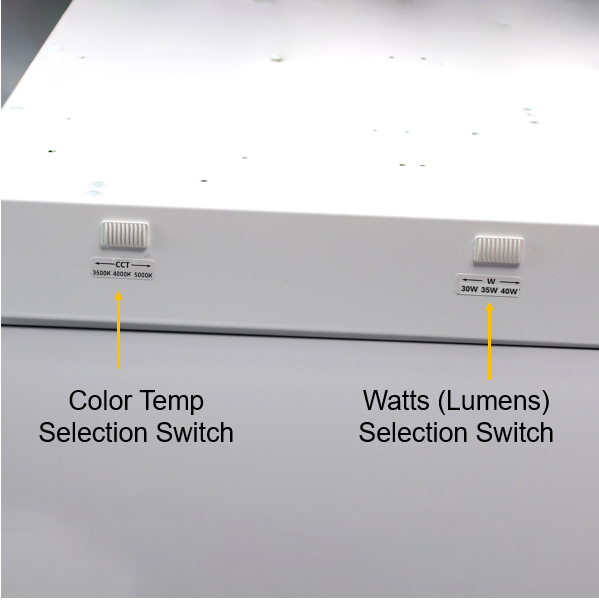

| Color Temperature | Selectable 3500K, 4000K or 5000K |
| Wattage | Selectable 30W, 35W or 40W |
| Lumens | 4000 - 5000 |
| Voltage | 120-277V |

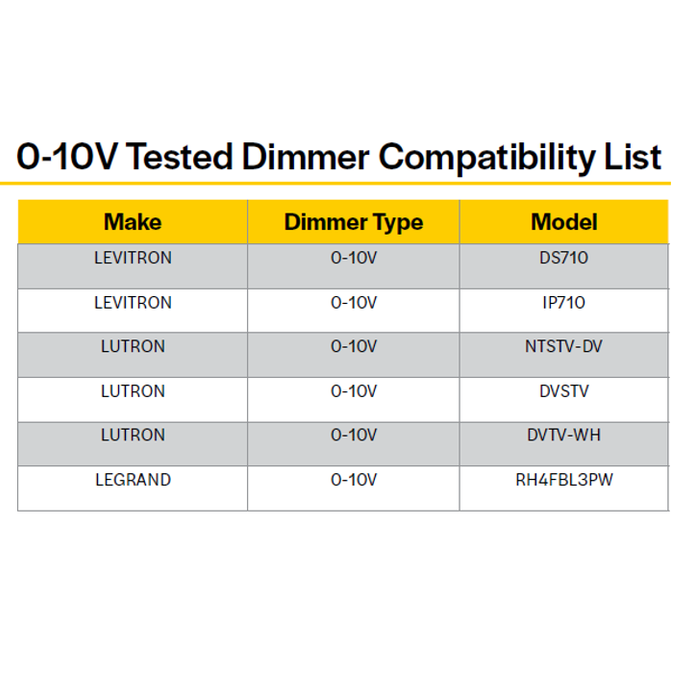

| Dimmable | Yes (0-10V) |
| Finish | White |
| Location Rating | Damp or Dry |
| Warranty | 5 years |
| CRI | 80 |
| DLC | DLC 5.1 Premium |
| UL Listed | Yes |

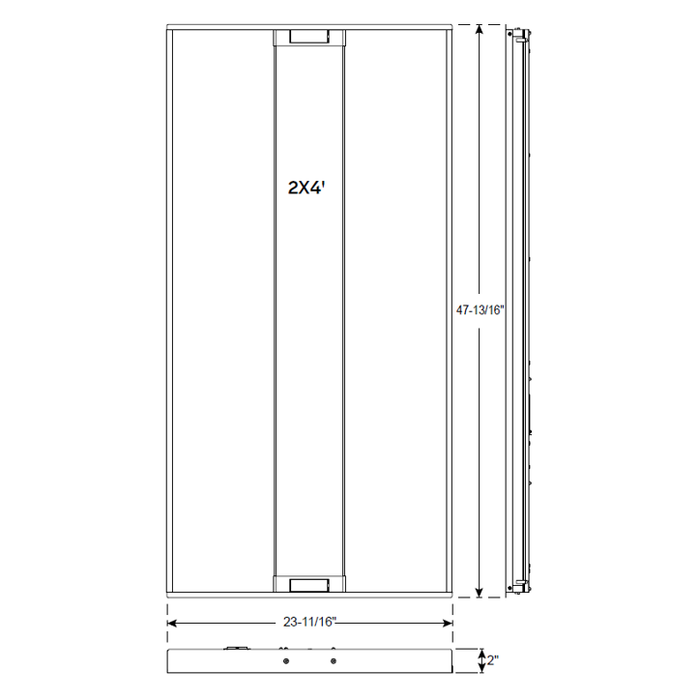

| Dimensions L | 48.4 |
| Dimensions W | 24.6 |
| Dimensions H | 2.4 |
| Weight (lb) | 12.9 |
| Country of Origin | VN |
