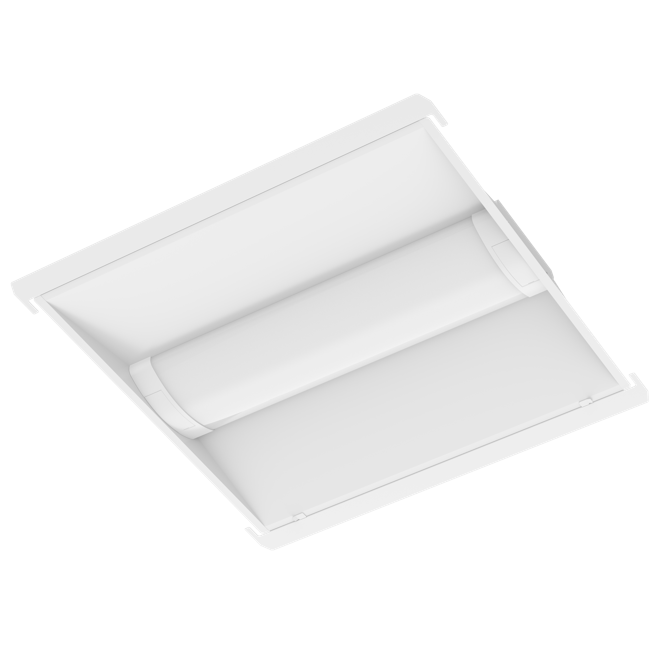

Halco - CBT-RK-22-LS-CS-UNV - 2x2 Troffer Retrofit Kit Controls Ready Lumen & Color Select 0-10V Dim product image

Halco - CBT-RK-22-LS-CS-UNV - 2x2 Troffer Retrofit Kit Controls Ready Lumen & Color Select 0-10V Dim

by Halco Lighting Technologies
$82.81 - $82.81
$82.81
$82.81 - $82.81
$82.81

LED 2x2 Center Basket Troffer Retrofit Kit Controls Ready 3.5mm Receptacle Lumen & Color Selectable (2500-4000Lum 20-25-30W 3500K-4000K-5000K) UNV 120-277V 0-10V Dimmable

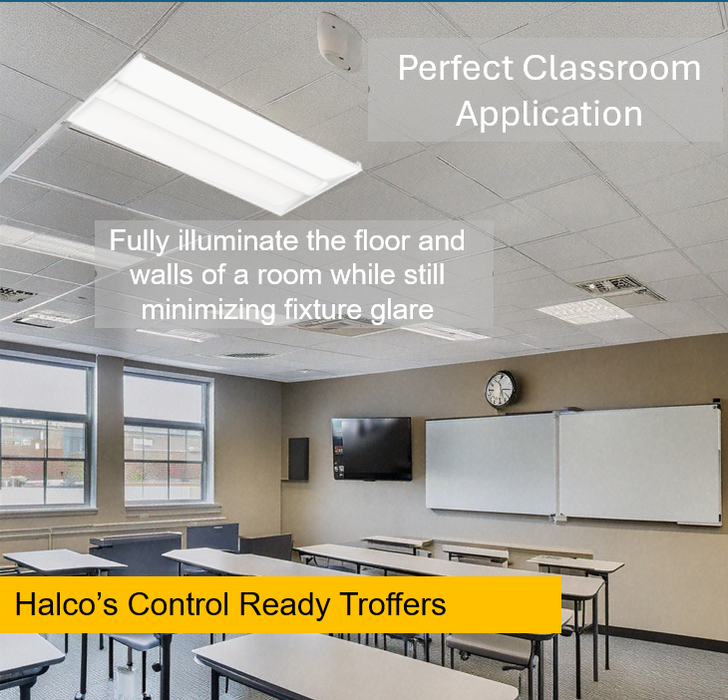

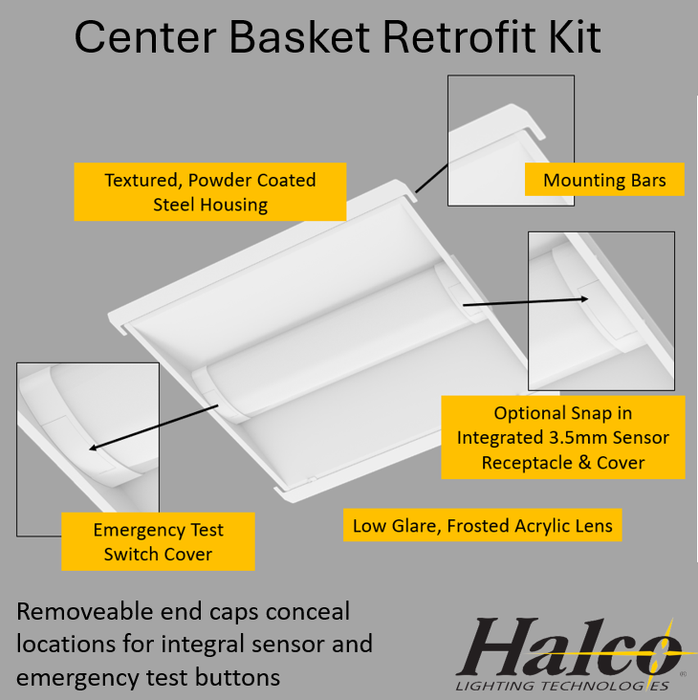

The Center Basket Troffer is a family of sleek, modern LED troffers and retrofit kits designed for new construction, remodel and retrofit recessed ceiling applications. The fully illuminated, frosted acrylic center basket design can fully illuminate the floor and walls of a room while still minimizing fixture glare. Removeable end caps conceal a 3.5mm receptacle for integrated sensor fixture control one end and an optional emergency battery pack test button on the other end. The retrofit kits can be used to easily and quickly convert most standard fluorescent parabolic, troffer and panel fixtures to a energy efficient, controls ready luminaire. Enlist the Center Basket Troffer family for your next lighting project.

Features

  • T-bar hinges and cam latches for retrofit kit

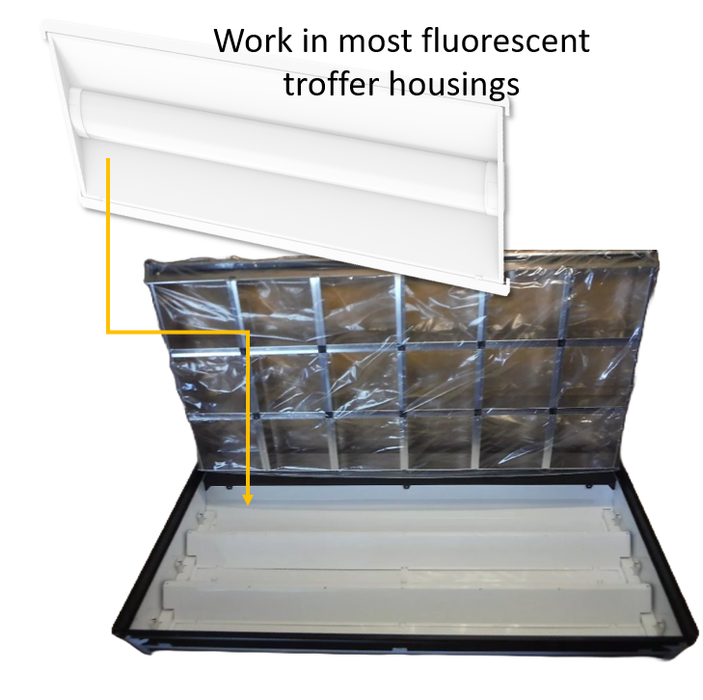

  • Retrofit kits work with fluorescent troffer and panel housings
  • Frosted acrylic center basket design illuminates walls and floors & minimizes glare

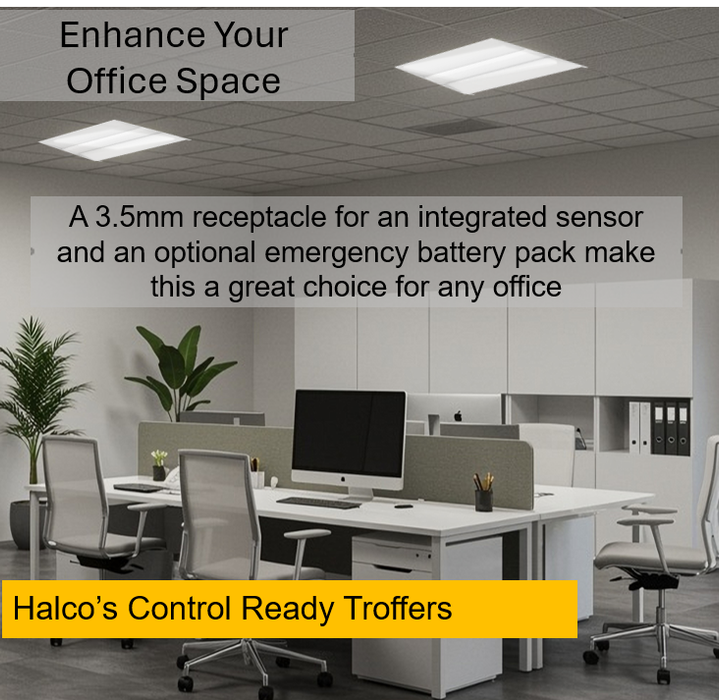

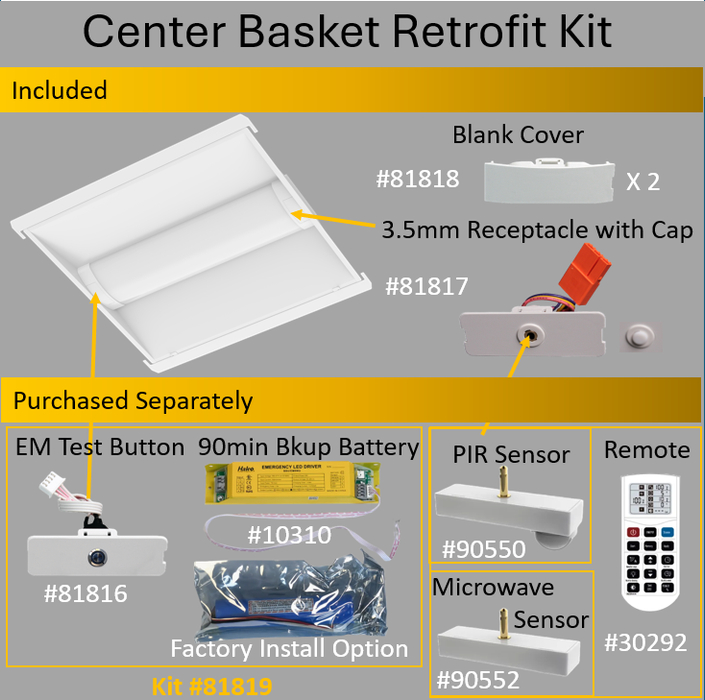

  • 3.5mm receptacle for integrated fixture sensors (in bag attached to fixture)
  • Pre-wired for optional battery backup & test button sold separately

Product Details

Product Code CBT-RK-22-LS-CS-UNV
Halco Product ID 81802
UPC 807154818020
Category Troffers
Technology LED
Applications Commercial, Education, Healthcare , Hospitality, Retail Office, Lobby, Hallway, Conference Room, Classroom

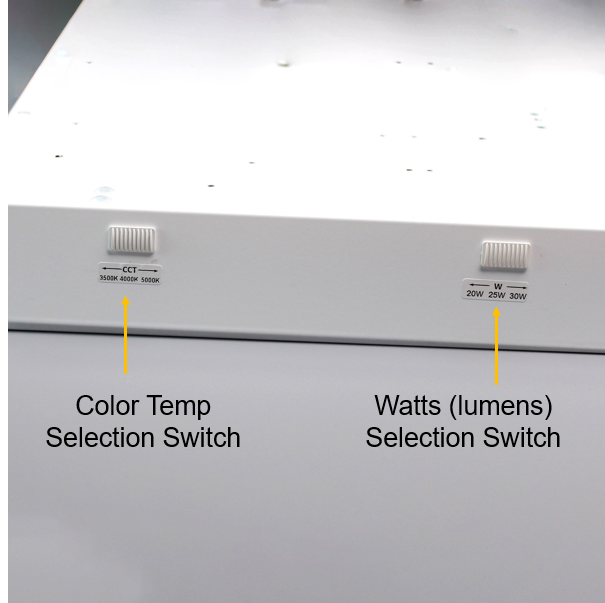

Color Temperature Selectable 3500K, 4000K or 5000K
Wattage Selectable 20W, 25W or 30W
Lumens 2500 - 4000
Voltage 120-277V

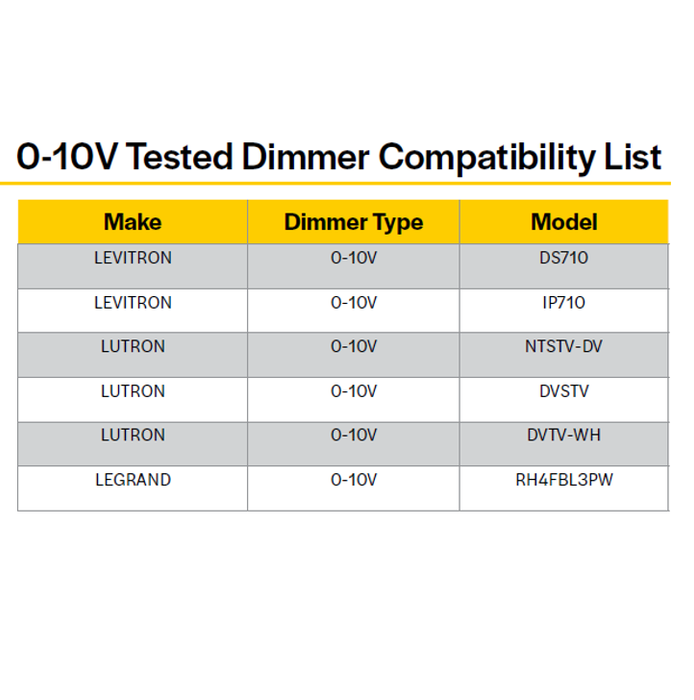

Dimmable Yes (0-10V)
Finish White
Location Rating Damp or Dry
Warranty 5 years
CRI 80
DLC DLC 5.1 Premium
UL Listed Yes

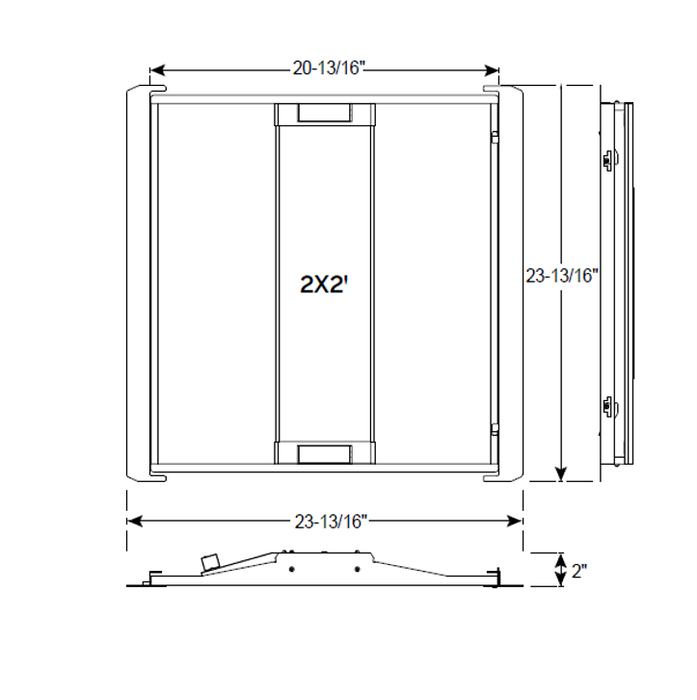

Dimensions L 24.8
Dimensions W 23
Dimensions H 3.2
Weight (lb) 7.39
Country of Origin VN
