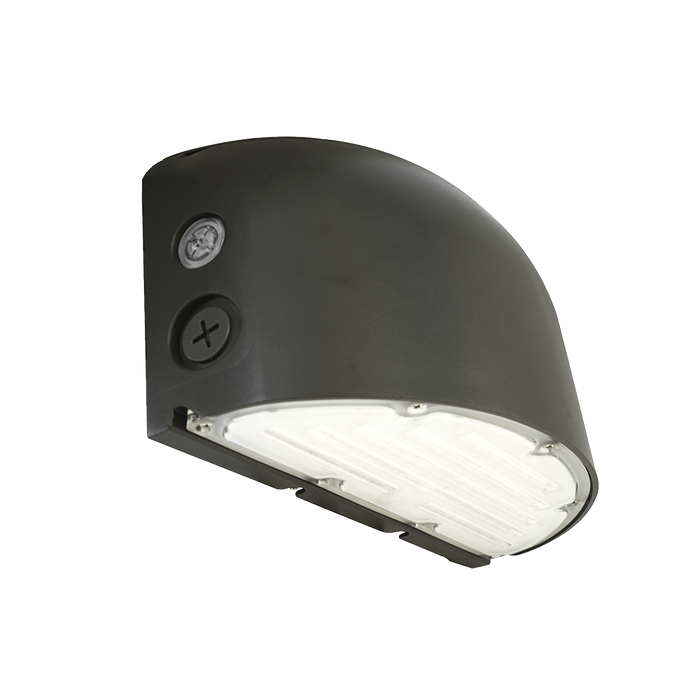

LED Half-Moon Wall Pack Wattage and CCT Selectable Bronze

LED Half-Moon Wall Pack Wattage and CCT Selectable Bronze

by Radiant-Lite
$139.00
$139.00 - $189.00
$139.00
$109.00
$109.00 - $149.00
$109.00

The WPHM Half Moon Full Cutoff Wall Pack delivers powerful, flexible illumination in a sleek, durable design. With field-selectable lumen output and color temperatures (3000K, 4000K, 5000K), this wall pack adapts effortlessly to your clients needs—from warm architectural accents to bright, secure site lighting.
Choose from
WPHM-875L-3CCT - 40/60/80 Watts - 8000/7000/5000  Lumens
WPHM-13108L-3CCT - 60/80/100 Watts - 13000/10000/8000 Lumens

•  Premium powder-coat, die-cast aluminum, bronze housing.

ELECTRICAL
•  Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
•  Universal 120-277 AC voltage (50-60Hz) is standard.
•  0-10V DC dimming drivers are standard.
•  Integrated photocell is standard. Photocell can be enabled or disabled by switch.
•  Input transient surge protection = 4kV for WPHM-875L-3CCT
•  Power factor > 90.
•  Total harmonic distortion < 20%.

OPTICAL SYSTEM
•  Polycarbonate lens.
•  Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
•  WPHM-875L-3CCT provides a range of 5,483 to 8,352 nominal lumens.
•  Long-life LEDs provide 164,000 hours of operation with at least 70% of initial lumen output (L70), and 49,000 hours with at least 90% of initial lumen output (L90).
•  LED chromaticity based on < 6-step ANSI quadrangles.
•  LED color maintenance < 0.0017 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
•  Color Rendering Index > 80.

MOUNTING
•  Wall Mount Kit included.
CODE COMPLIANCE
•  cULus listed for wet locations.
•  DLC premium listed
•  Complies with FCC Part 15, class A.
•  IP65 rated for ingress protection.
•  IK08 rated for impact protection.
