Halco - CDLEM-8-LS-CS-WH-DDV - Comm Retrofit DL EM Ready 8" Lum & CCT Select Triac/0-10V WH

Original price $96.80 - Original price $96.80
Original price
$96.80
$96.80 - $96.80
Current price $96.80

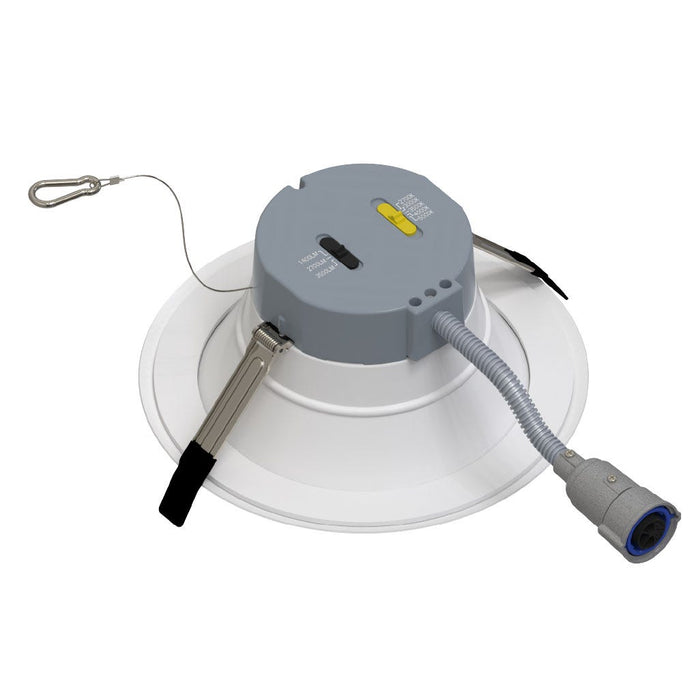

Commercial Retrofit Downlight, 8in, Emergency Battery Ready, Lumen and CCT Select, 120-277V, Dimmable TRIAC/ELV & 0-10V, White Reflector, White Flange

Halco's Retrofit Commercial Downlights are a quick, easy, and convenient way to reinvent commercial lighting spaces. Color temperatures and light output can be chosen before or after installation with the flip of a switch. There is no need to worry about what type of dimming is currently being used in the space as the integral fixture driver for the CDL Series can dim using either 0-10V or ELV/Triac phase cut protocols. When emergency lighting is needed, the CDLEM family offers an aesthetically pleasing integral emergency battery backup solution. The robust spring clips and quick connect metal clad cables makes installation of the fixture and battery backup a breeze and the low profile combination test switch and charging indicator light eliminate large, unsightly ceiling and fixture mounted buttons. White and Haze colored reflectors, combined with all the other fixture options of the CDL family complete the look and make your commercial retrofit lighting projects a success.

Features

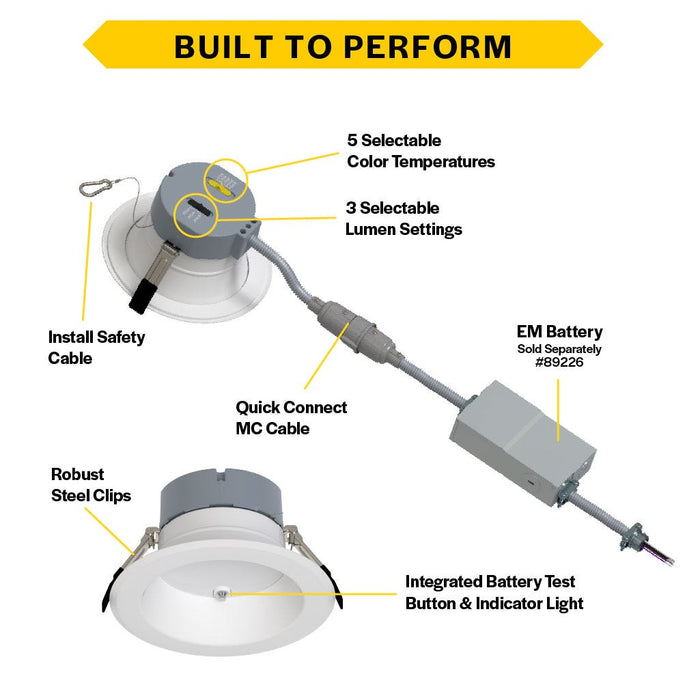

  • Quick Connect Emergency Battery Backup Ready - Product 89226 Sold Separately
  • Integrated Battery Test Button & Charging Indicator
  • Dual Dimming Universal 120-277V (0-10V) or 120V TRIAC/ELV
  • IP65, Wet Location, Energy Star, Title 24, FCC, ETL, Rohs

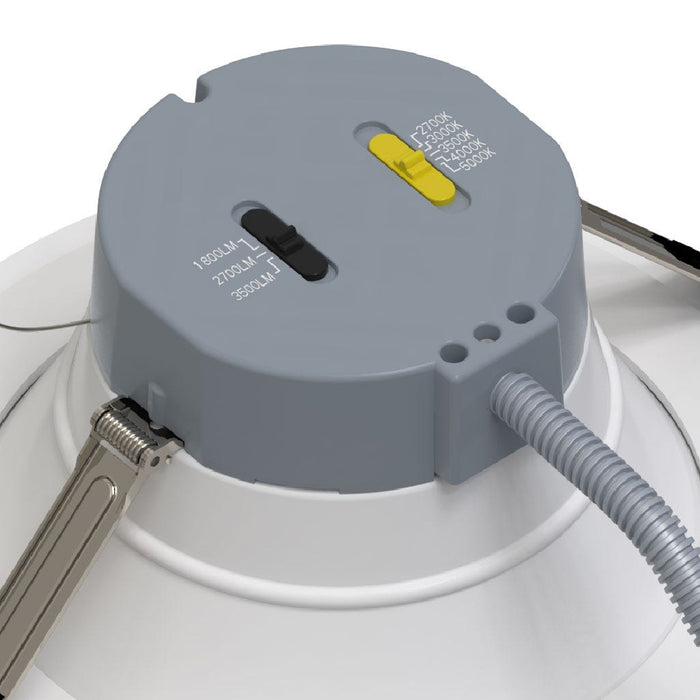

  • Lumen and Color Temp (5 CCT's) Selectable

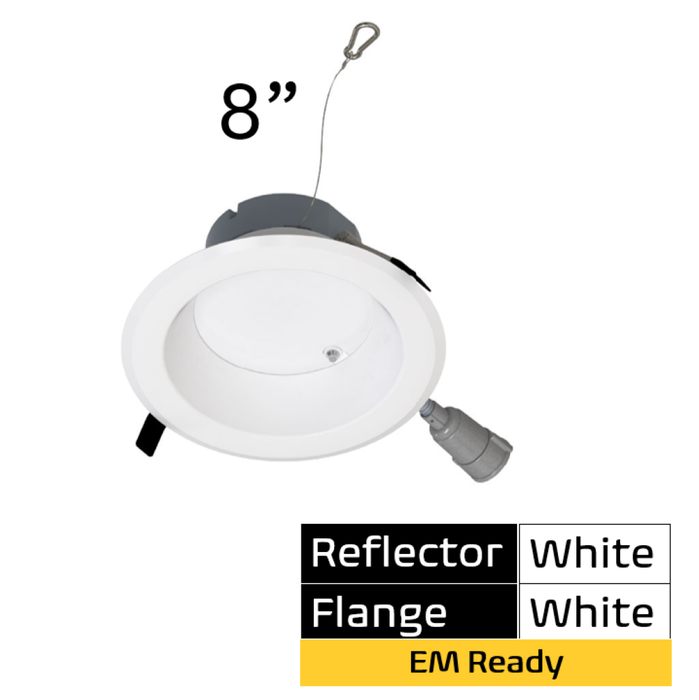

  • White Reflector and White Flange/Trim
  • Mouse Trap Universal Steel Spring Clips
  • Can or Canless Installation

Product Details

Product Code CDLEM-8-LS-CS-WH-DDV
Halco Product ID 89220
UPC 807154892204
Category Retrofit Downlights
Technology LED
Applications Office Parks, Commercial Buildings, Commercial Maintenance Facilities, K-8 Schools, Colleges and Universities, Architectural building entrances, Big Box Retail Stores
Color Temperature Selectable 2700K, 3000K, 3500K, 4000K or 5000K
Wattage 17W, 25W or 31W
Lumens Selectable 1800-2700-3500
Voltage 120-277V
Dimmable Yes (Triac/ELV or 0-10V)
Finish White
Location Rating Wet Location
Warranty 5 years
CRI 90
Energy Star Yes
ETL Listed Yes
IP Rating IP65
Title 24 Yes

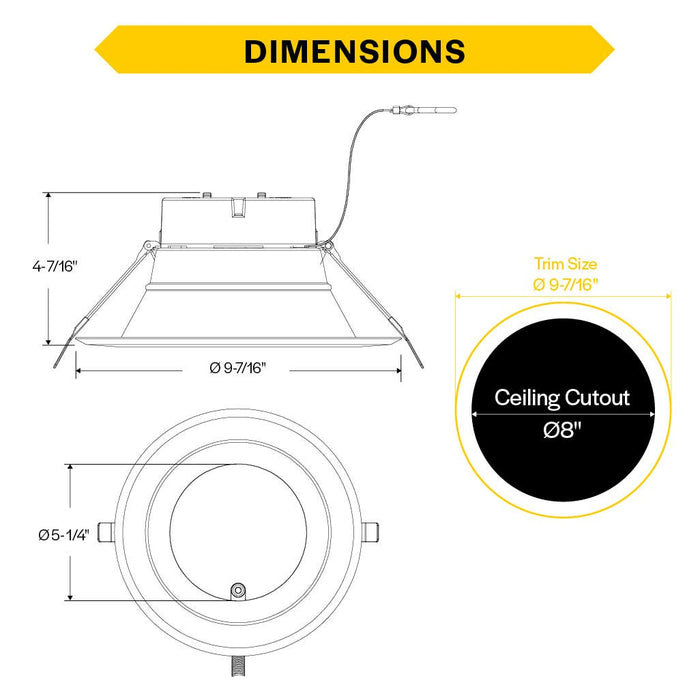

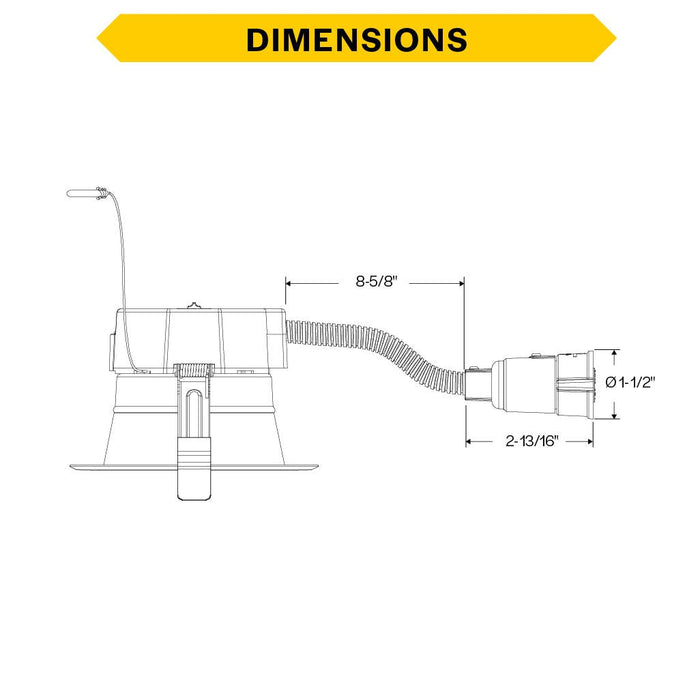

Dimensions L 9.8000000000000007
Dimensions W 9.8000000000000007
Dimensions H 5.9
Weight (lb) 1.97
Country of Origin KH
