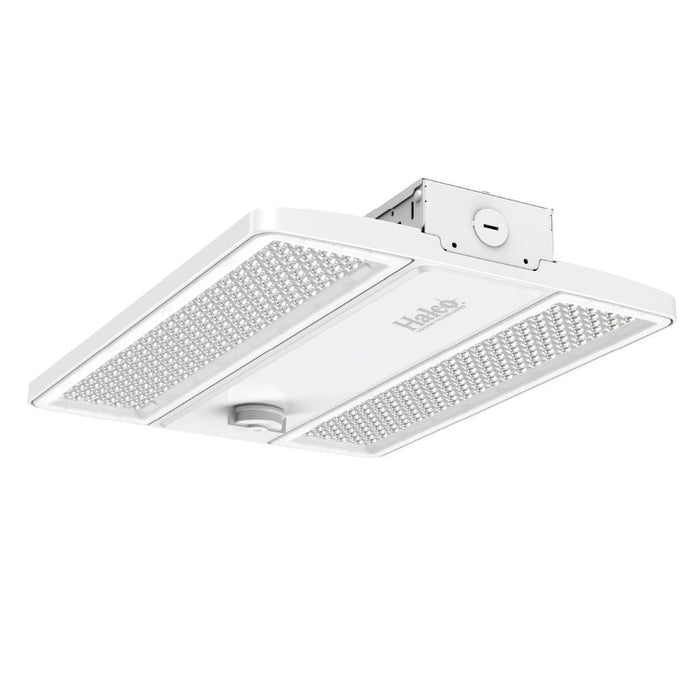

Halco - CLHB-1-LS-CS-U - Controls Ready CLHB-1 Lum & Color Select Z10 Adj Beam Angle
LED Controls Ready Compact Linear Highbay-1 Lumen & Color Select 14,600-19,500LM (90W-110W-130W) 35-40-50K Adj Beam Angle (Narrow, Standard, Wide) Z10 Sensor Socket 120-277VAC with Suspended Chain Mount (Gen-2)

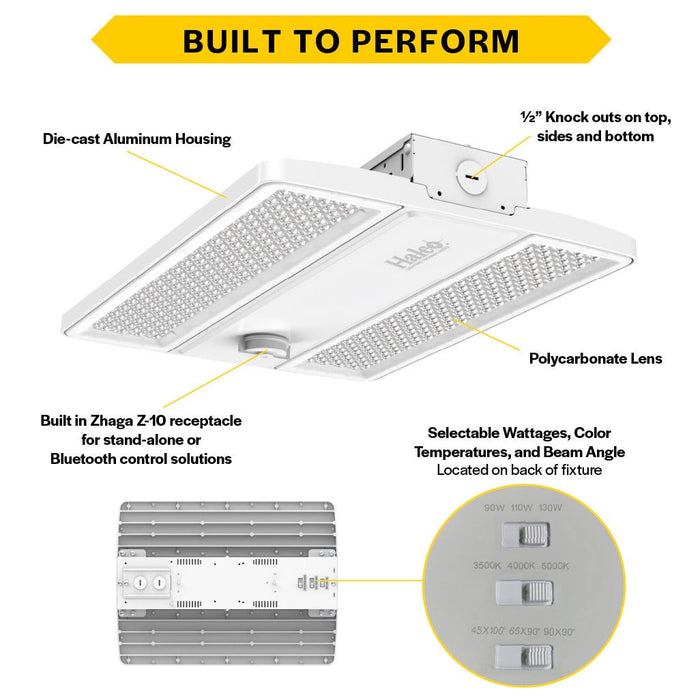

The Compact Linear High Bay (CLHB) combines advanced functionality with a compact, installer-friendly design to deliver strong performance across a wide range of commercial and industrial applications. Its diecast aluminum housing provides excellent heat dissipation and long-term durability, while field-selectable lumen output, CCT, and beam angle give users the flexibility to optimize light levels and distribution directly on site. The fixture also includes a Zhaga Z-10 receptacle for plug-and-play control integration, enabling standalone or Bluetooth and other advanced lighting control solutions to support greater energy savings and system efficiency. With its blend of performance, adaptability, and modern control readiness, the CLHB offers a reliable and versatile lighting solution for warehouses, gymnasiums, retail spaces, and other large indoor environments.
Features
- Compact Design to Reduce Shipping and Installation Time
- Lumen and Color Selectable

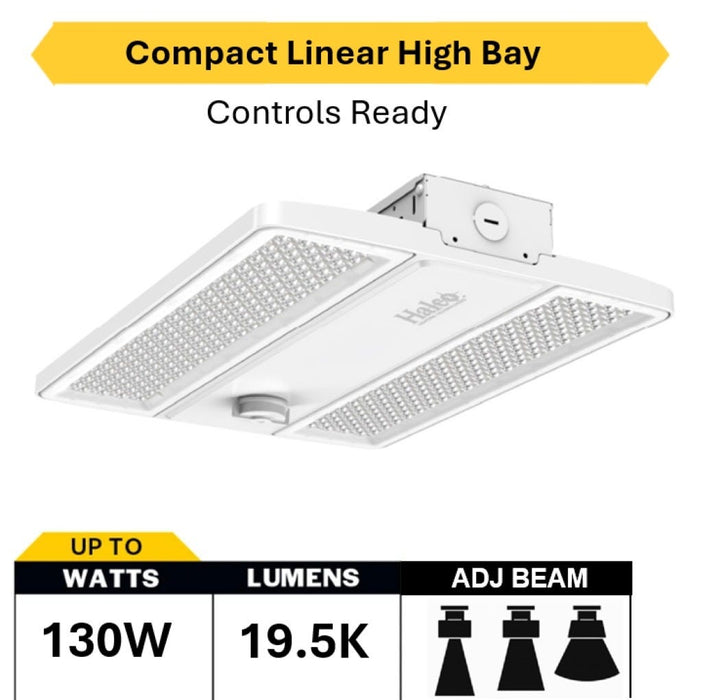

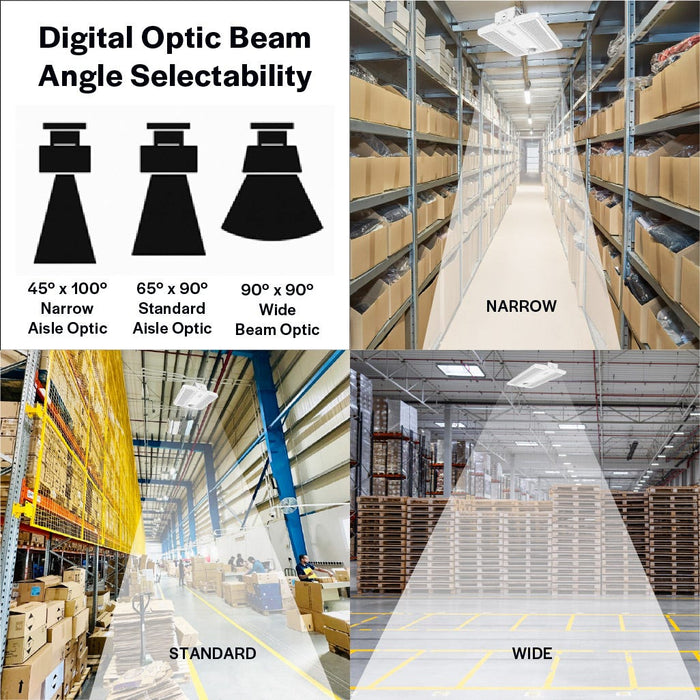

- Adjustable Beam Angle (Narrow, Standard or Wide) with Simple Switch

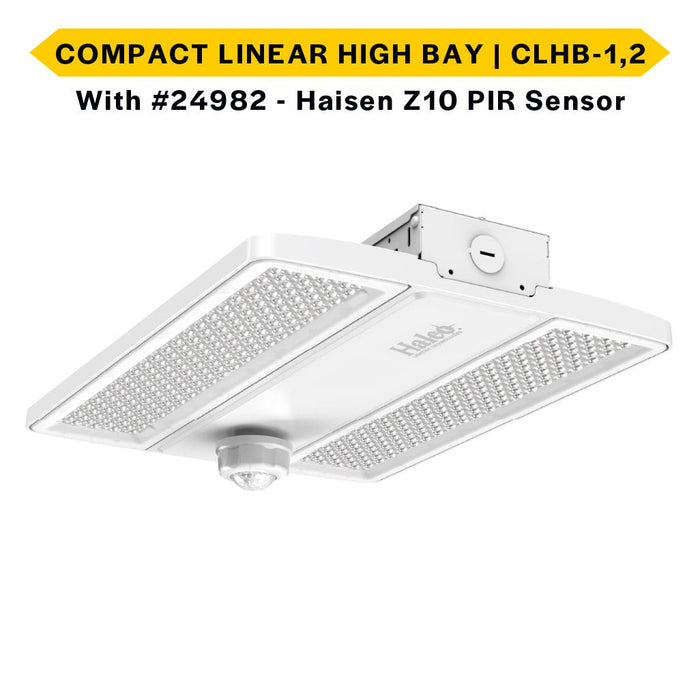

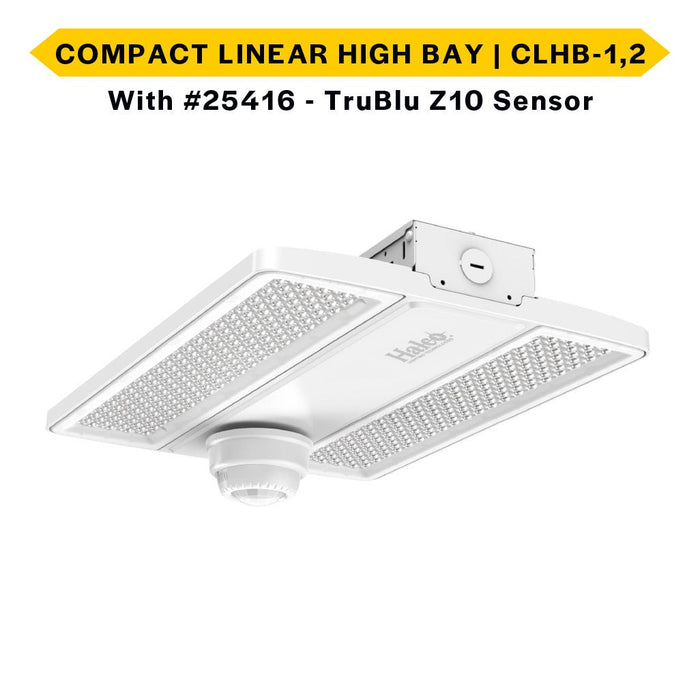

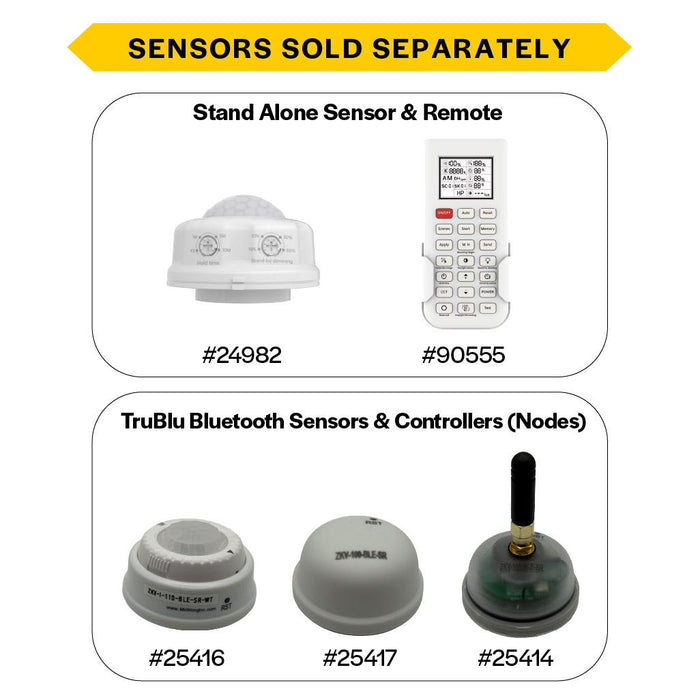

- Zhaga Z10 Base for Plug & Play Sensor options (Bluetooth or Standalone)
- Operates in Temperatures up to 55C (131F)

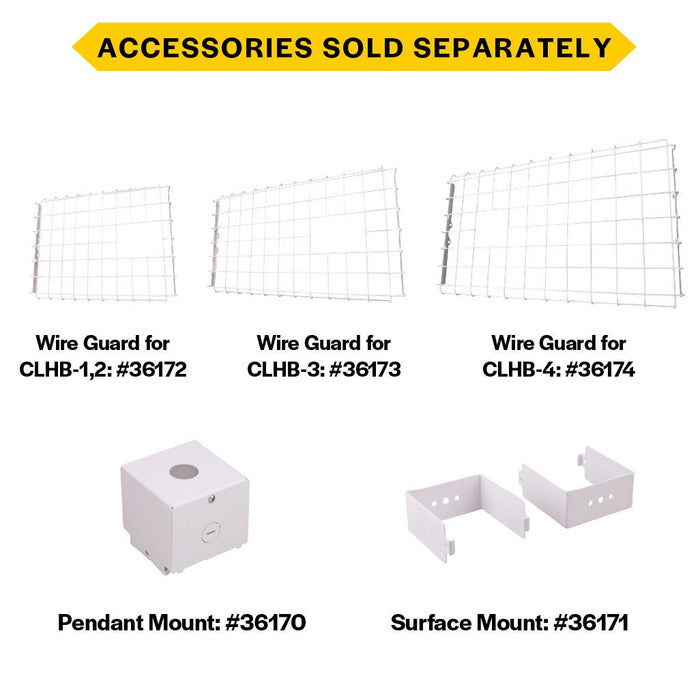

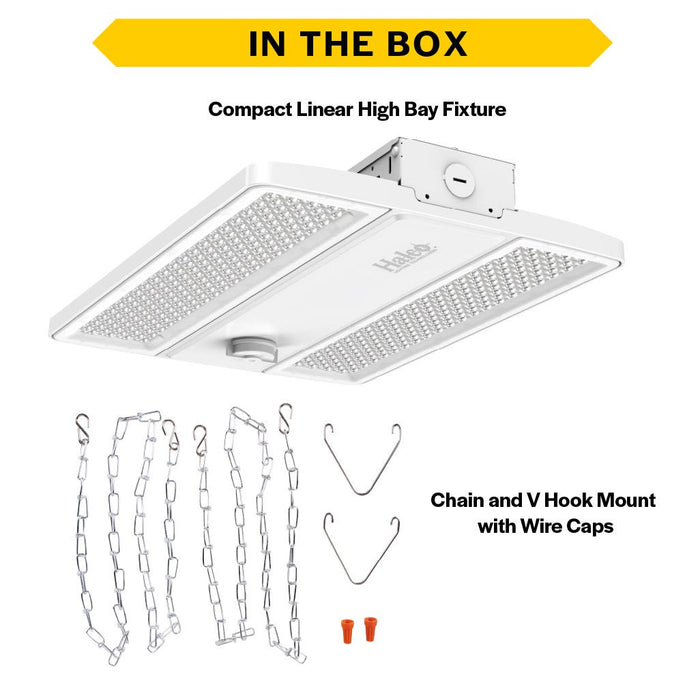

- Comes with Chain and V-Hook, Pendant & Bracket Ceiling Mount Sold Separately
- High Voltage and Battery Backup Made to Order Options Available
Product Details
| Product Code | CLHB-1-LS-CS-U |
| Halco Product ID | 36160 |
| UPC | 807154361601 |
| Category | Compact Linear Highbays |
| Technology | LED |

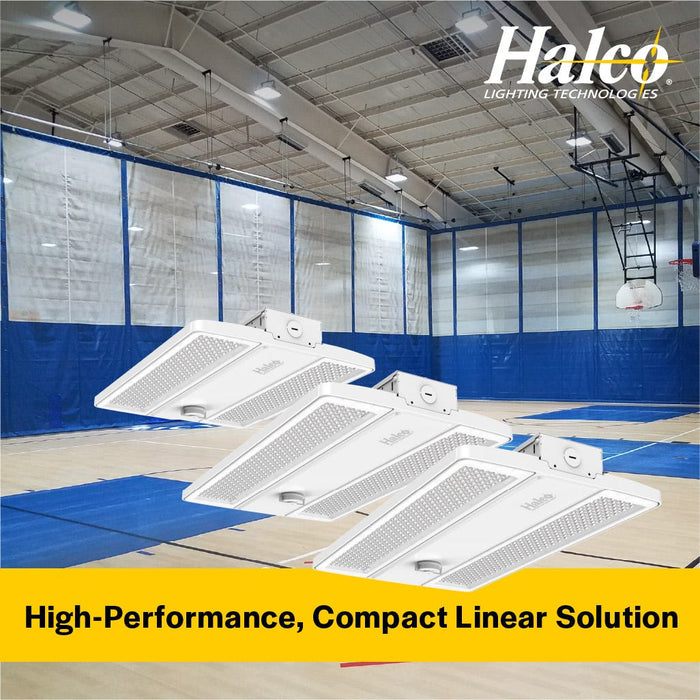

| Applications | Warehouses, Gymnasiums, Retail Spaces, Big Box Retail and other large indoor environments |

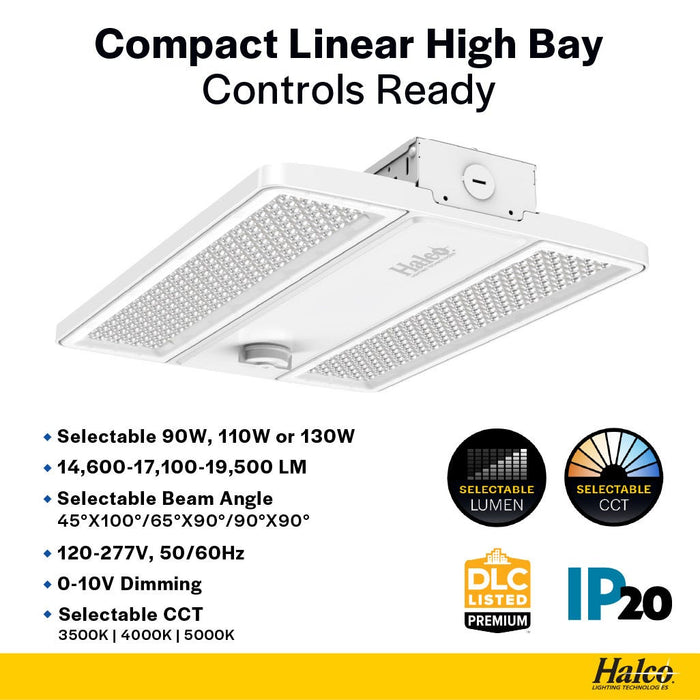

| Color Temperature | Selectable 3500K, 4000K or 5000K |
| Wattage | Selectable 90W, 110W or 130W |
| Lumens | 14,600-17,100-19,500 LM |
| Voltage | 120-277VAC |
| Dimmable | Yes (0-10V) |
| Finish | White |
| Location Rating | Damp |
| Warranty | 5 years |
| CRI | 80 |
| DLC | DLC 6.0 Premium |
| UL Listed | Yes |
| IP Rating | IP20 |

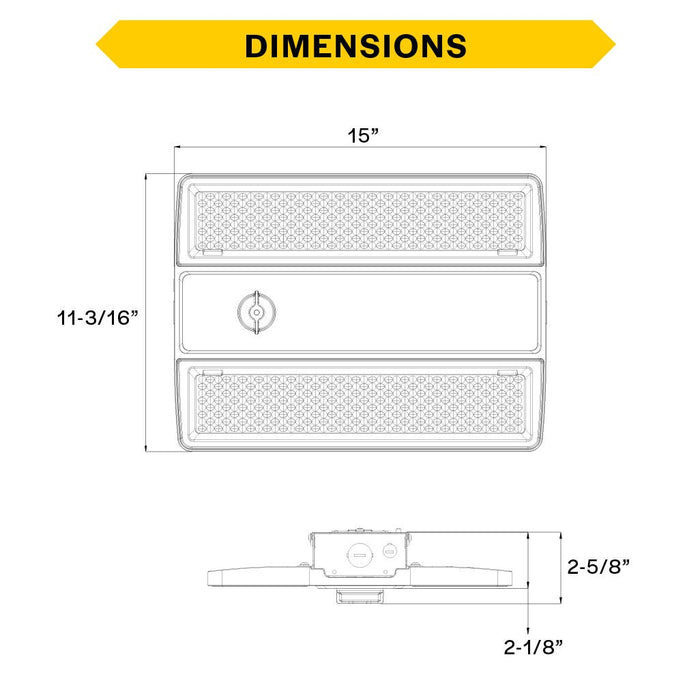

| Dimensions L | 15.8 |
| Dimensions W | 12 |
| Dimensions H | 3.1 |
| Weight (lb) | 7 |
| Country of Origin | VN |
