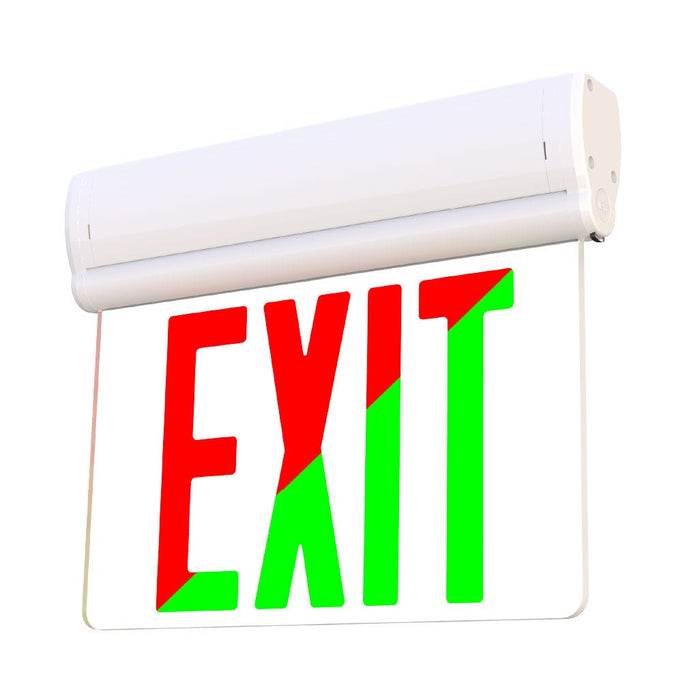

Halco - EMG-EDG-PL-RG - Emergence Thermoplastic Edgelit Exit Red/Green Single/Double Face
Emergence Series, Thermoplastic and Acrylic Edgelit Exit, Selectable Red/Green Legend, Selectable Single/Double Rotating Face, White Housing, Selectable Manual or Self-Diagnostics, Battery Backup, Universal Mounting

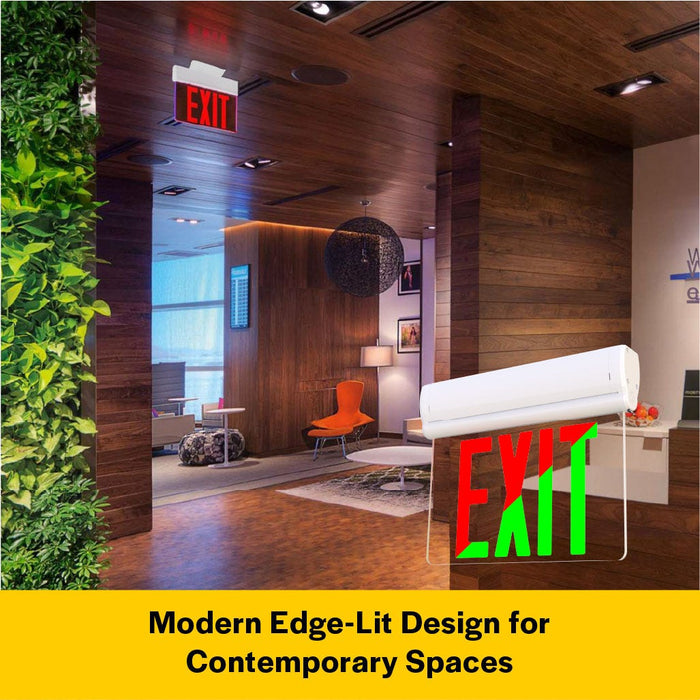

The Emergence Series Thermoplastic Edgelit Exit Sign offers a versatile code compliant solution for hallway, stairwell, and other Life Safety applications. The field-selectable red/green legend, field-selectable single/double face, field selectable manual or self-test/self-diagnostics and universal ceiling/end/ wall mounting includes field-selectable applique chevron indicators as well as universal input voltage to provide the most field configurable edgelit exit sign on the market. The pivoting housing design makes it ideal to mount on ceilings or walls in surface, end or top mount configurations, indicating the path of egress for a minimum of 90 minutes after a power loss.

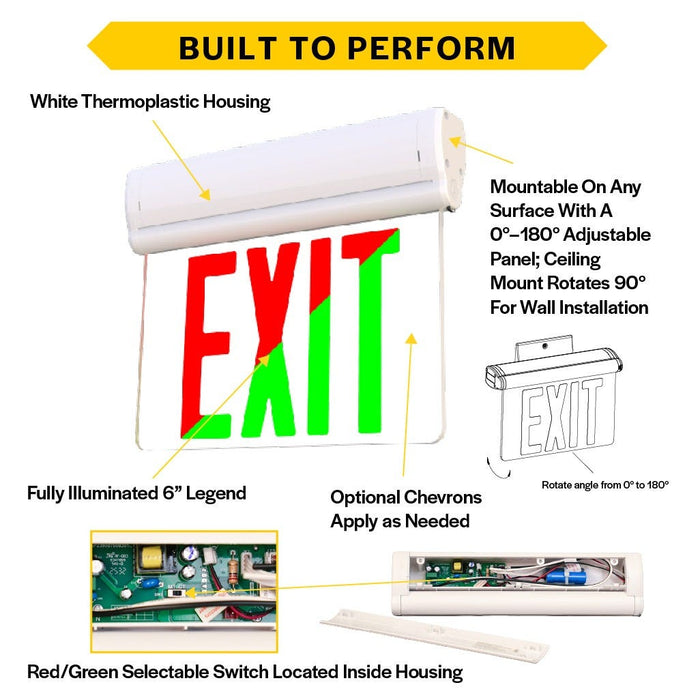

Features
- Field Selectable Red/Green Legend, Applique Chevrons, Single/Double Face & Manual/Self-test Mode
- 90-min Backup Battery (LiFePO4), Test Button & Charging Indicator, 24 Hour Recharge Time
- Injection Molded Thermoplastic White Housing - Pivoting Fully Illuminated 6" Legend

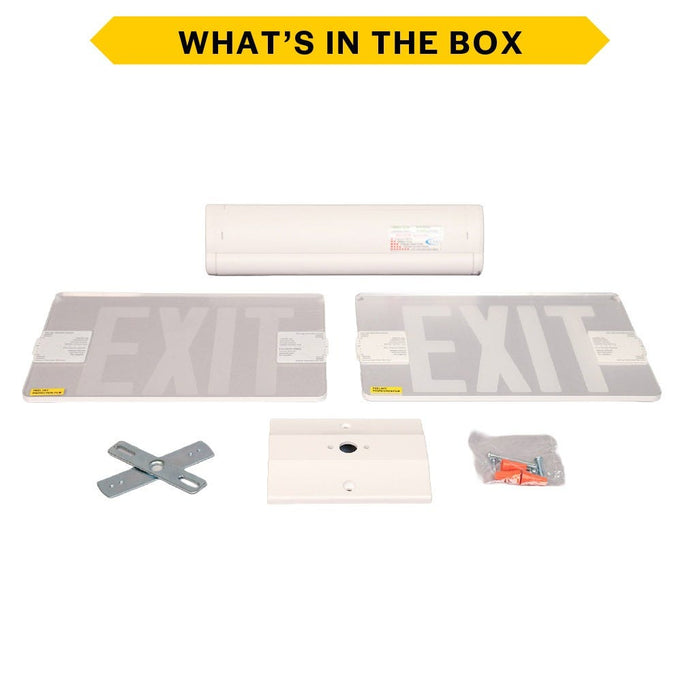

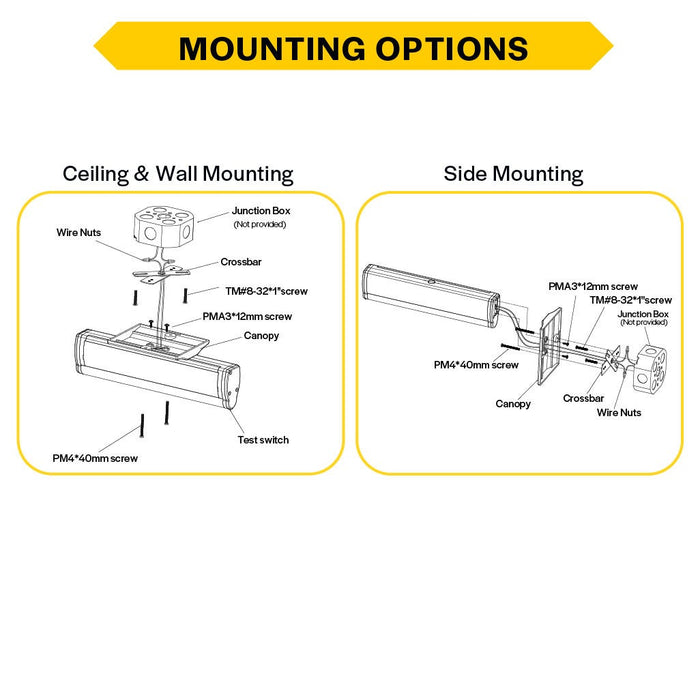

- Use canopy and cross bar (included) to mount for wall or ceiling (top) or end (side mount)
- Acrylic panel rotates from 0 to 180Deg (90Deg becomes a Wall Mount)
- Tool-less Replaceable Acrylic Panel"‹
Product Details
| Product Code | EMG-EDG-PL-RG |
| Halco Product ID | 97137 |
| UPC | 807154971374 |
| Technology | LED |
| Applications | Commercial, Schools, Retail"‹, Hospitality, Auto Dealerships, Healthcare, Grocery, Multi-Family"‹, Office, Convenience Store, hallways |
| Color Temperature | Selectable Red or Green |
| Voltage | 120-277V |
| Dimmable | No |
| Finish | White |
| Location Rating | Damp |
| Warranty | 2 years |
| DLC | No |
| Energy Star | No |
| UL Listed | Yes |
| ETL Listed | No |
| IP Rating | No |
| Title 24 | No |

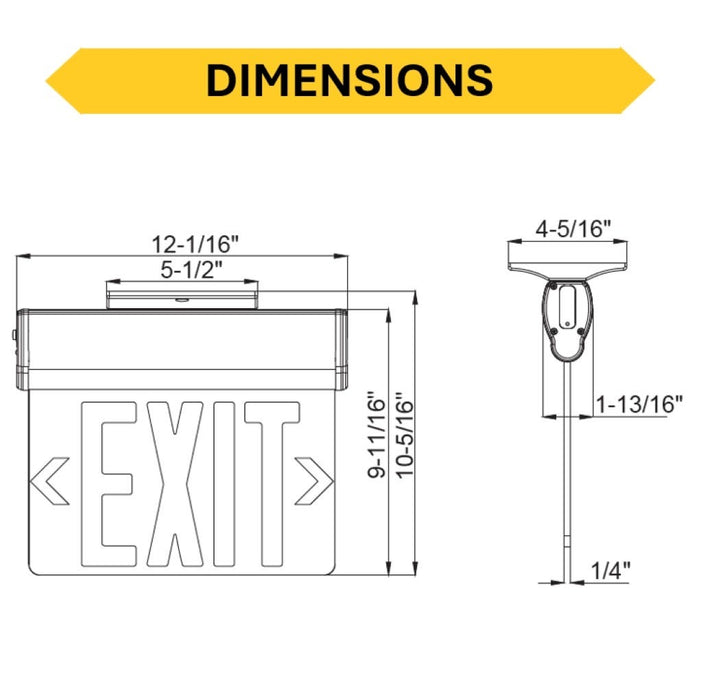

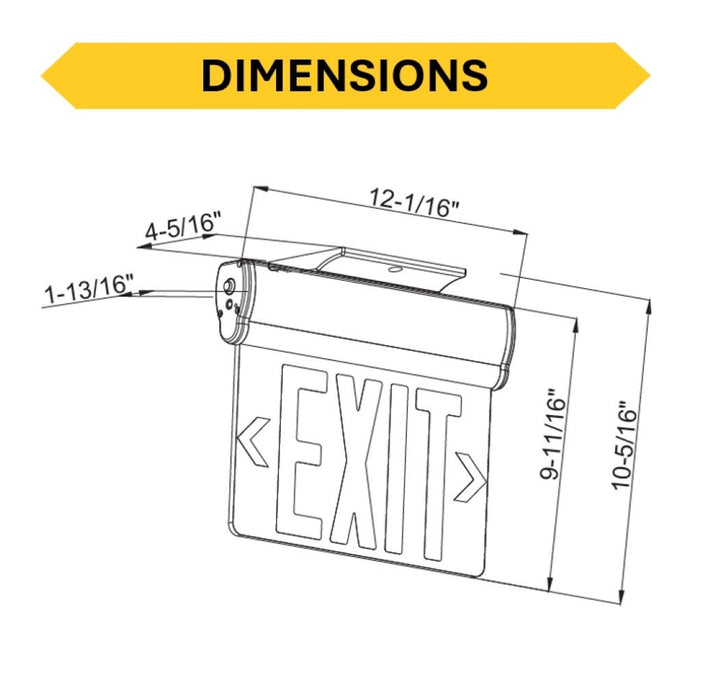

| Dimensions L | 12.6 |
| Dimensions W | 8.5 |
| Dimensions H | 2.8 |
| Weight (lb) | 2.2999999999999998 |
| Country of Origin | CN |
