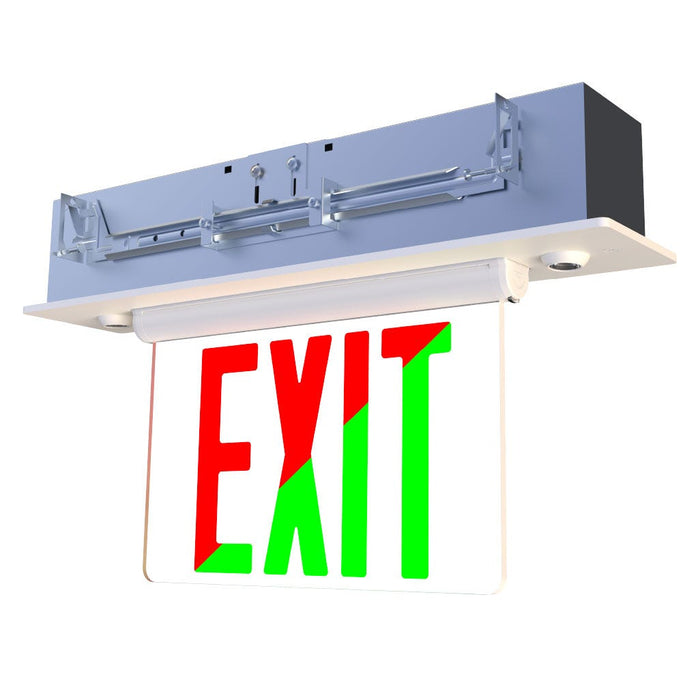

Halco - EMG-EDGC-PL-RG - Emergence Thermoplastic Edgelit Combo Red/Green Single/Double Face
Emergence Series, Thermoplastic and Acrylic Edgelit Combo, Selectable Red/Green Legend, Selectable Single/Double Rotating Face, White Housing, Selectable Manual or Self-Diagnostics, Recessed Mounting
The Emergence Series Thermoplastic Edgelit Combination Exit Sign / Emergency Unit offers a versatile code compliant solution for hallway, stairwell, and other Life Safety applications. The field-selectable red/green legend, field-selectable single/double face, field-selectable manual or self-test/self-diagnostics and recessed mounting includes field-selectable applique chevron indicators as well as universal input voltage to provide the most field configurable edgelit exit sign on the market. The pivoting housing design makes it ideal to mount on ceilings or walls in recessed mount configurations, indicating the path of egress for a minimum of 90 minutes after a power loss.

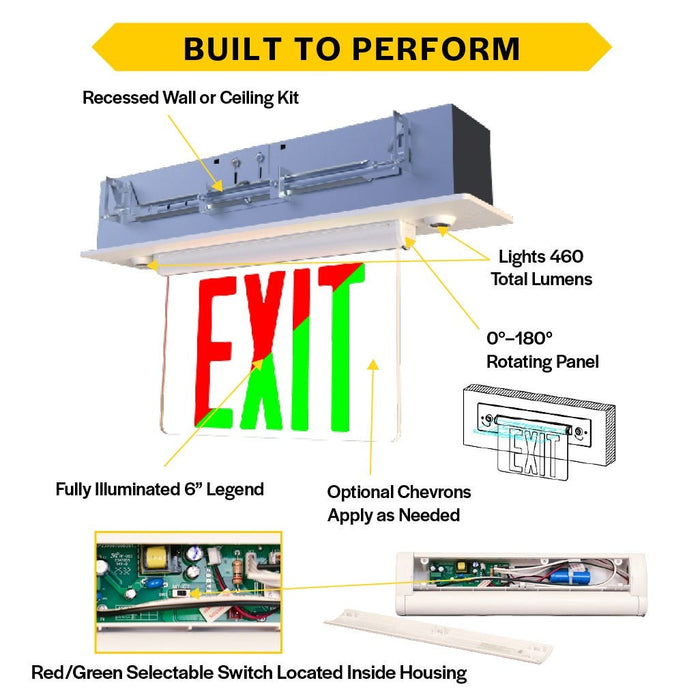

Features
- Field Selectable Red/Green Legend, Applique Chevrons, Single/Double Face & Manual/Self-test Mode
- 90-min Backup Battery (LiFePO4), Test Button & Charging Indicator, 24 Hour Recharge Time
- Two EM rotating heads 480Lumen/1.5W total
- Lens Injection Molded Thermoplastic White Housing - Pivoting Fully Illuminated 6" Legend

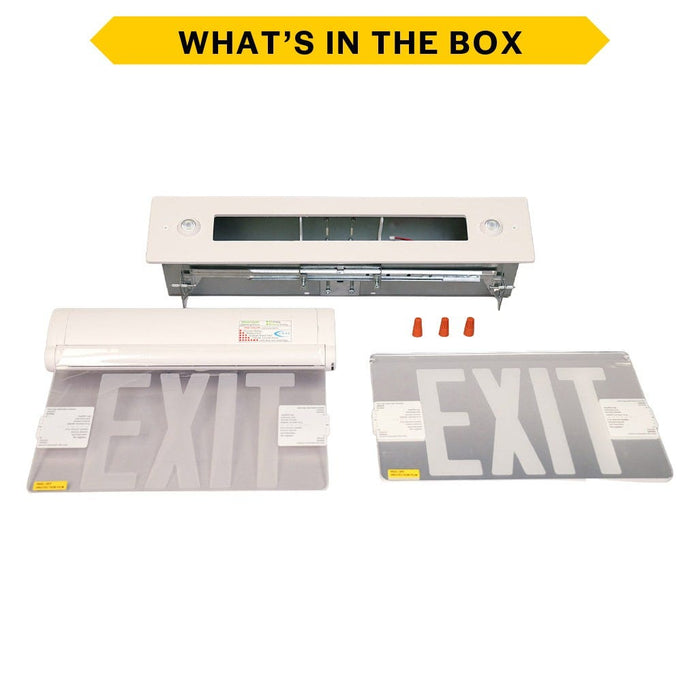

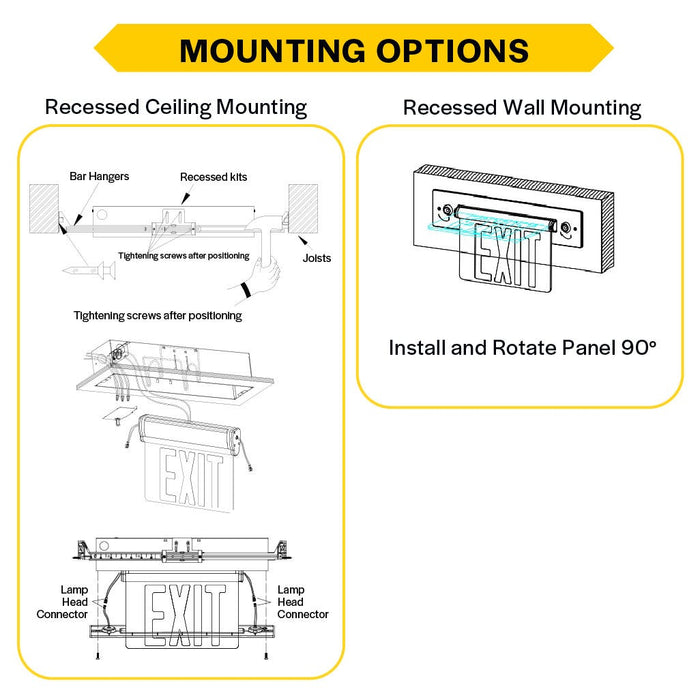

- Recessed ceiling or wall mount and bar hangers included
- Acrylic panel rotates from 0 to 180Deg (90Deg becomes a Wall Mount)
- Tool-less Replaceable Acrylic Panel-Double-Face Mirror Insert Included"‹
Product Details
| Product Code | EMG-EDGC-PL-RG |
| Halco Product ID | 97138 |
| UPC | 807154971381 |
| Technology | LED |
| Applications | Commercial, Schools, Retail"‹, Hospitality, Auto Dealerships, Healthcare, Grocery, Multi-Family"‹, Office, Convenience Store, hallways |
| Color Temperature | Selectable Red or Green |
| Wattage | 1.5W |
| Lumens | 460 |
| Voltage | 120-277V |
| Dimmable | No |
| Finish | White with Gray Recessed Box |
| Location Rating | Damp |
| Warranty | 2 years |
| DLC | No |
| Energy Star | No |
| UL Listed | Yes |
| ETL Listed | No |
| IP Rating | No |
| Title 24 | No |

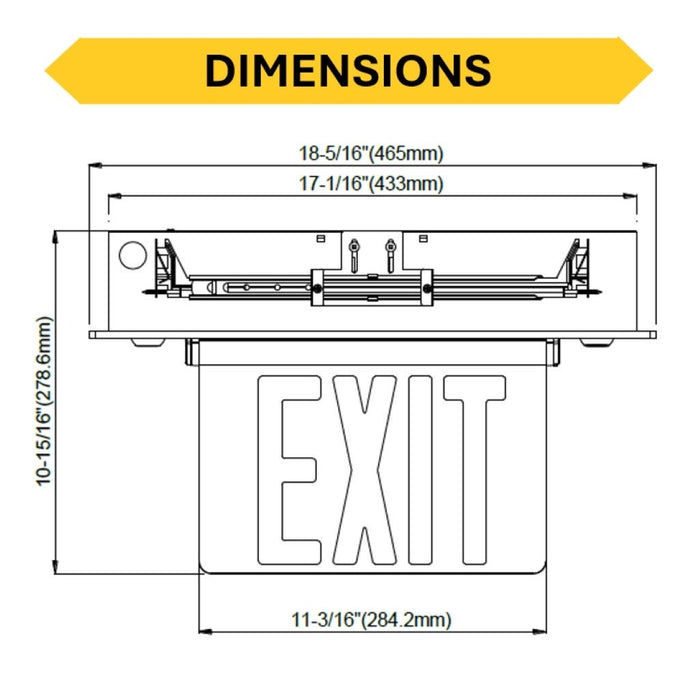

| Dimensions L | 18.5 |
| Dimensions W | 8.8000000000000007 |
| Dimensions H | 4.8 |
| Weight (lb) | 5.3 |
| Country of Origin | CN |
