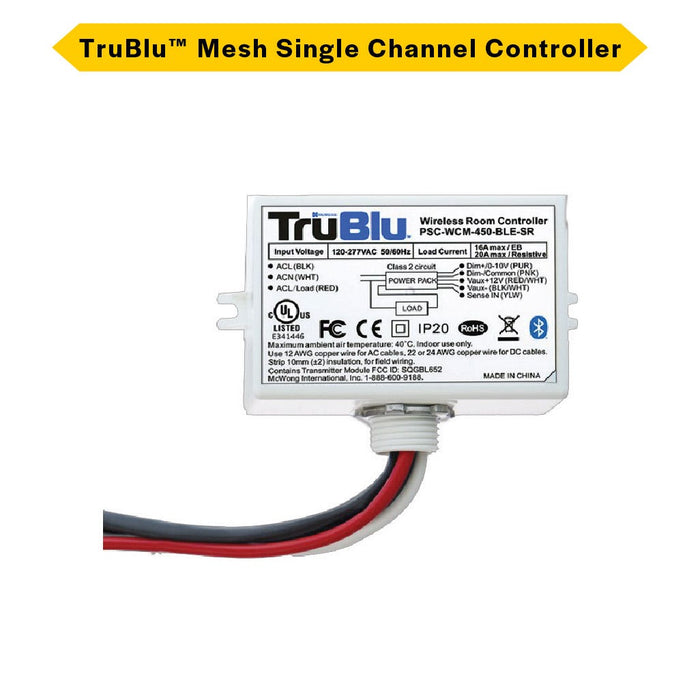

Halco - PSC-WCM-450-BLE-SR - TruBlu Line Voltage Single Channel Wireless Room Controller
TruBlu Mesh Line Voltage Single Channel Wireless Room Controller with Integral Relay 120V--277VAC
The Wireless Room Controller is Bluetooth NLC certified and designed to fit into a Blue-tooth mesh system for wireless control of room lighting with an integral 20A relay and single channel of 0-10VDC dimming output. With an input voltage of 120-277VAC, this unit is controlled wirelessly via a qualified Bluetooth SIG Mesh network, allowing for wireless dimming of lighting and seamless integration of Bluetooth Mesh software solutions. The unit is suited for mounting to an electrical enclosure (via 1/2” knock-out) or to a fixture/luminaire (via mounting tabs). This controller is rated for use in plenums and offers additional features, including 12VDC auxiliary power supply for sensors or other products and load control input that operates the integral relay
Features
- Single channel wireless Bluetooth room controller
- Required when using TruBlu Ceiling Sensors 25431 and 25432

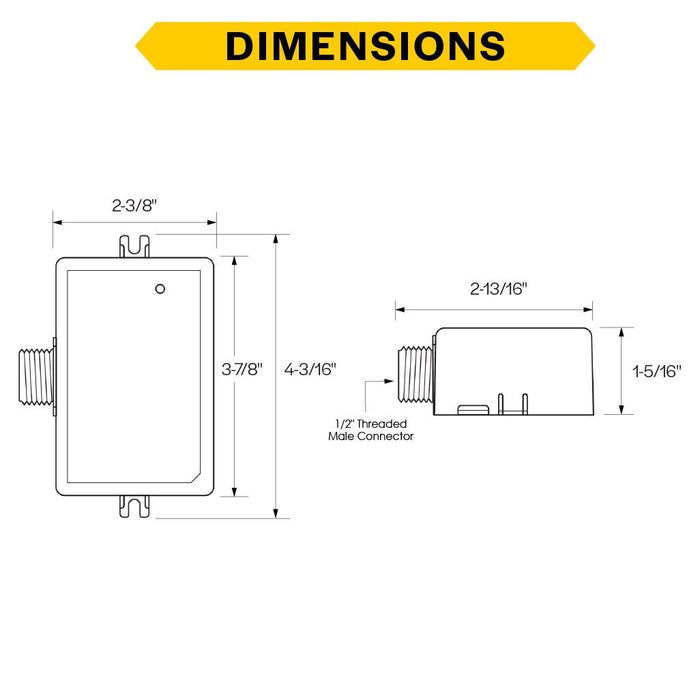

- Mounts via a 1/2in KO to electrical box or using tabs to fixture
- Line Voltage Input (120-277 VAC) - 12VDC auxiliary output
- Includes 1/2in threaded nipple for fixture or enclosure mounting
- Bluetooth Range of 100FT
- Configurable using mwConnect TruBlu web Portal or iOS Phone App
Product Details
| Product Code | PSC-WCM-450-BLE-SR |
| Halco Product ID | 25433 |
| UPC | 807154254330 |
| Category | Room Sensors-Controllers |
| Technology | Networked Lighting Controls |
| Applications | Use with Ceiling TruBlu Sensors |
| Warranty | 5 years |
| DLC | DLC Listed |
| UL Listed | Yes |
| Weight (lb) | 0.35 |
| Country of Origin | US |
