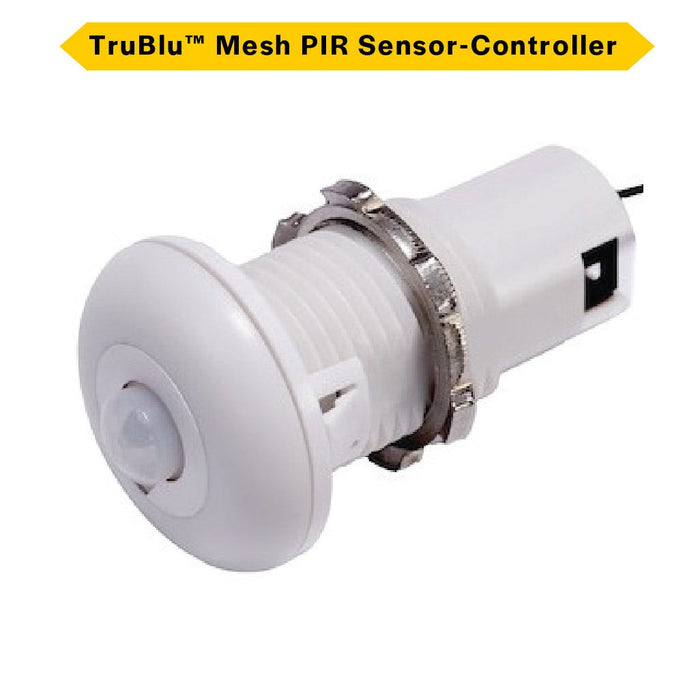

Halco - PSC-ZMV-I-11N-BLE-SR - TruBlu PIR Knock-out Sensor Screw Base White Dim LowVolt product image

Halco - PSC-ZMV-I-11N-BLE-SR - TruBlu PIR Knock-out Sensor Screw Base White Dim LowVolt

by Halco Lighting Technologies
$101.56 - $101.56
$101.56
$101.56 - $101.56
$101.56

TruBlu Mesh Compact PIR Sensor Controller Screw Base for Knock-out 12-24VDC 0-10 Dimming 8-15Ft Mount Height

This single-channel wireless fixture sensor-controller provides active-high relay control and integrates both a passive infrared occupancy sensor and a daylight sensor. The controller mounts in a 1/2in knockout and secured by the included option clips or via the threaded body. The product includes a connector-based wiring harness to ease installation. This device is Bluetooth NLC certified and controlled wirelessly via Bluetooth Mesh technology allowing for wireless dimming of luminaires. The compact size ensures minimal installation in a luminaire or enclosure

Features

  • Bluetooth PIR Sensor/Controller Wired to Fixture Mounts to 1/2in Knock-out on Fixture or Enclosure
  • Powered by 12-24VDC
  • Single Channel, 0-10V Dimming, Zoning, High & Low End Trim
  • Mounting Height 8-15FT and 15FT Sensor Radius
  • Configurable using mwConnect TruBlu web Portal or iOS Phone App

Product Details

Product Code PSC-ZMV-I-11N-BLE-SR
Halco Product ID 25423
UPC 807154254231
Category Fixture Sensors-Controllers
Technology Networked Lighting Controls
Applications For use on indoor fixtures (such as panels, troffers, strips, Linear Vaportights) with mount height to 15ft requiring Bluetooth lighting control technology. Need 1/2" knockout to attach to fixture
Finish White
Warranty 5 years
DLC DLC Listed
UL Listed Yes
Country of Origin US

Downloads

View manufacturer product page
